Description

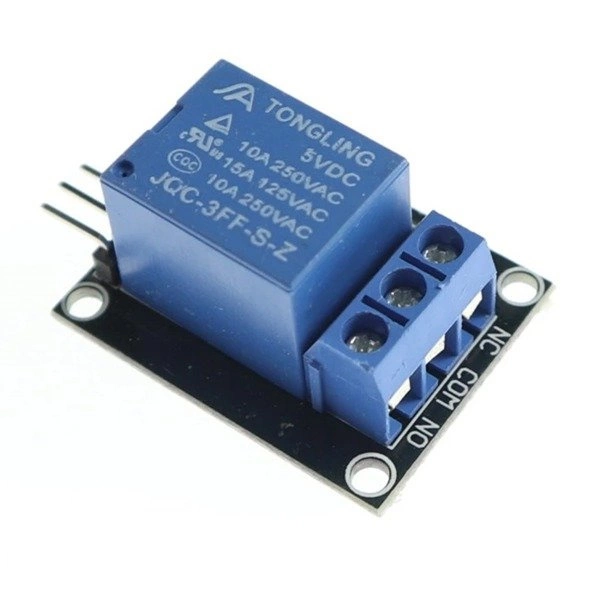

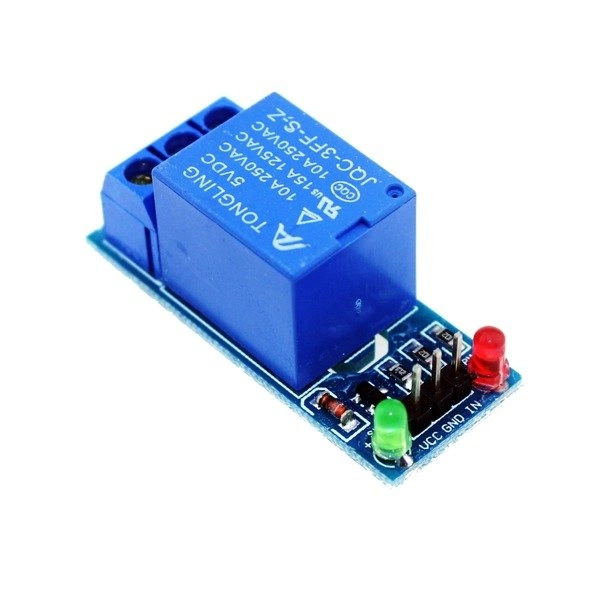

Relay module 1 channel – 5V – 10A/250V

Universal version of the JQC-3FF-S-Z relay module with a 5V-powered coil. The circuit can be used to control actuators using the ports of a microcontroller or any runner kit.

The module has three input leads S, +, -. For proper operation of the pinout, connect the 5 V power supply to the „+” pin, the „-” ground and the input signal „S”.

Output terminals are marked as NO – disconnected by default, NC – connected by default with COM. Applying a high state to pin S switches the relay contacts and creates a connection between COM and NO disconnecting COM from NC.

Product features

• JQC-3FF-S-Z relay module with coil supplied with 5V voltage
• The module allows the operation of actuators drawing up to 10A using the ports of a microcontroller or any Arduino development kit
• Application for contact boards, arduino, runtime modules, etc.
• For operation it is necessary to connect the power supply of the relay and the control signal in digital form.
• Use as: switch for electrical equipment – such as motors, lighting controller, controller of executive systems

Technical data

• Supply voltage: 5 V
• JQC-3FF-S-Z relay
• Coil voltage: 5 V
• Relay control: high state HIGH – 3.3 – 5V
• Maximum contact voltage: 250 VAC
• Maximum current: 10 A
• Plate dimensions 34x26x17 mm

Included

• Relay module 1-channel – 5V – 10A/250V – 1pc.
