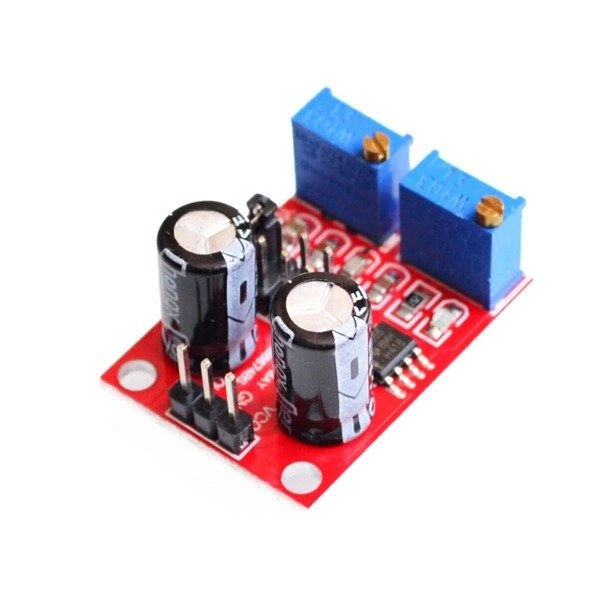

NE555 Generator Module – adjustable 1Hz – 200 kHz

NE555 Rectangular Signal Generator Module with two potentiometers that set the frequency of the output waveform and its fill factor.

Technical data

• Power supply: 5V-15V.
• At 5V, 15mA output;
• At 12V output 35mA
• Amplitude: 4.2V V-PP to 11.4V V-PP.
• Maximum output: >=15MA (5V, V-PP 50%),
• >=35MA (12V , V-PP 50%)
• To choose:
  • LF file: 1Hz ~ 50Hz
  • IF file: 50Hz ~ 1kHz
  • High-frequency file: 1KHz ~ 10kHz
  • HF file: 10kHz ~ 200kHz
• Low level – LED on
• High level – LED off
• Low frequency – LED blinks

Included

• KA2284 module – 1 pc.
