Description

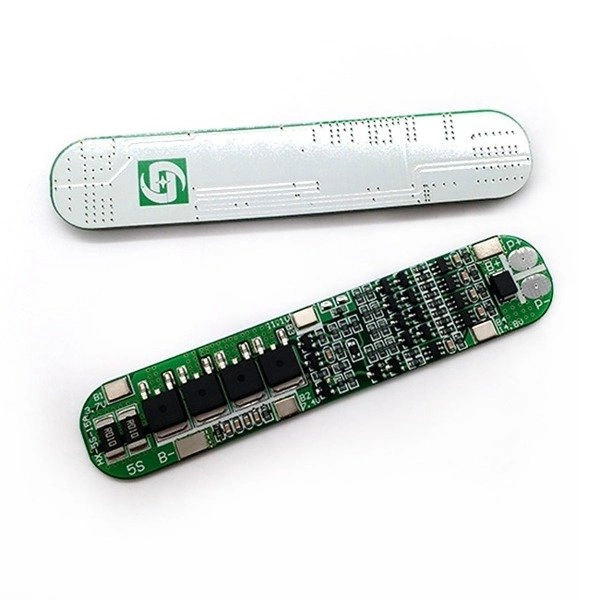

Li-ion 5S charging module – 18.4V – 15A

5S electronic system working as a battery protection against over-discharge. This module will also reliably function as a charger for these batteries.

Allows you to build a safe battery pack that does not need to be charged with special chargers for li-ion batteries.

The 2-in-1 module was created to keep the cells in the best possible condition by not allowing them to overcharge as well as over-discharge. One module here replaces the charger and security module.

More information about BMS modules, their application and how they work HERE.

Product features

• Short circuit protection.
• Protection against overcharging.
• Excessive Discharge Protection.
• Overcurrent protection.
• Can be used for a variety of lithium cells 3.7V.
• Compact size and lightweight.
• Safety assurances battery.

Technical data

• Dimensions: 98.5x12x3.7mm
• Charging voltage: 21V
• Continuous discharge current: 15A
• Continuous charging current (upper limit): 15A
• Overcharge protection delay: 0.5S

Included

• BMS PCM PCB charging and protection module for Li-Ion cells – 5S – 18.4V – 15A – 1pc.
