Description

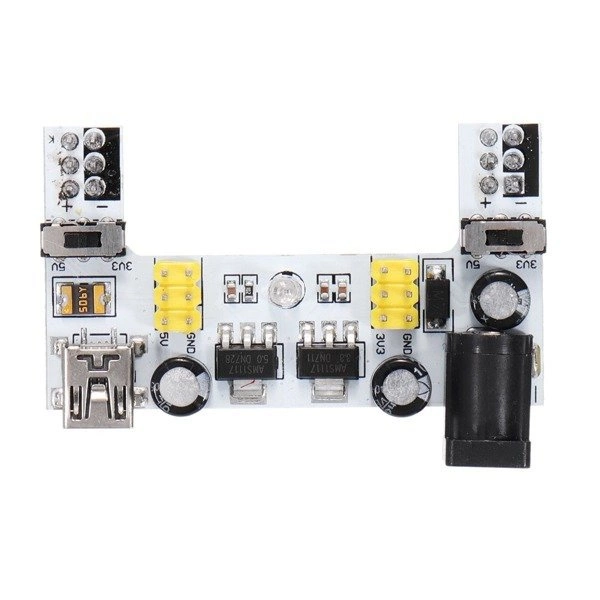

XD-42 module for powering contact boards

Universal power module XD-42, dedicated to contact boards, allows you to easily bring 5V or 3.3V stabilized voltage to the rails of this board. The board can be powered by a 12V AC adapter, or by a mini USB port – 5V.

Technical data

• Input voltage:
  • dC 12V power supply: 5.5 / 2.1 mm connector
  • mini-usb port: 5 V – cable can be purchased separately
• Output voltage:
  • 3.3 V or 5 V selectable by a switch separately on both sides of the board
• Current: up to 800mA
• LED indicator to indicate voltage

Included

• XD-42 module for powering contact boards – 5V/3.3V – 1pc.
