Description

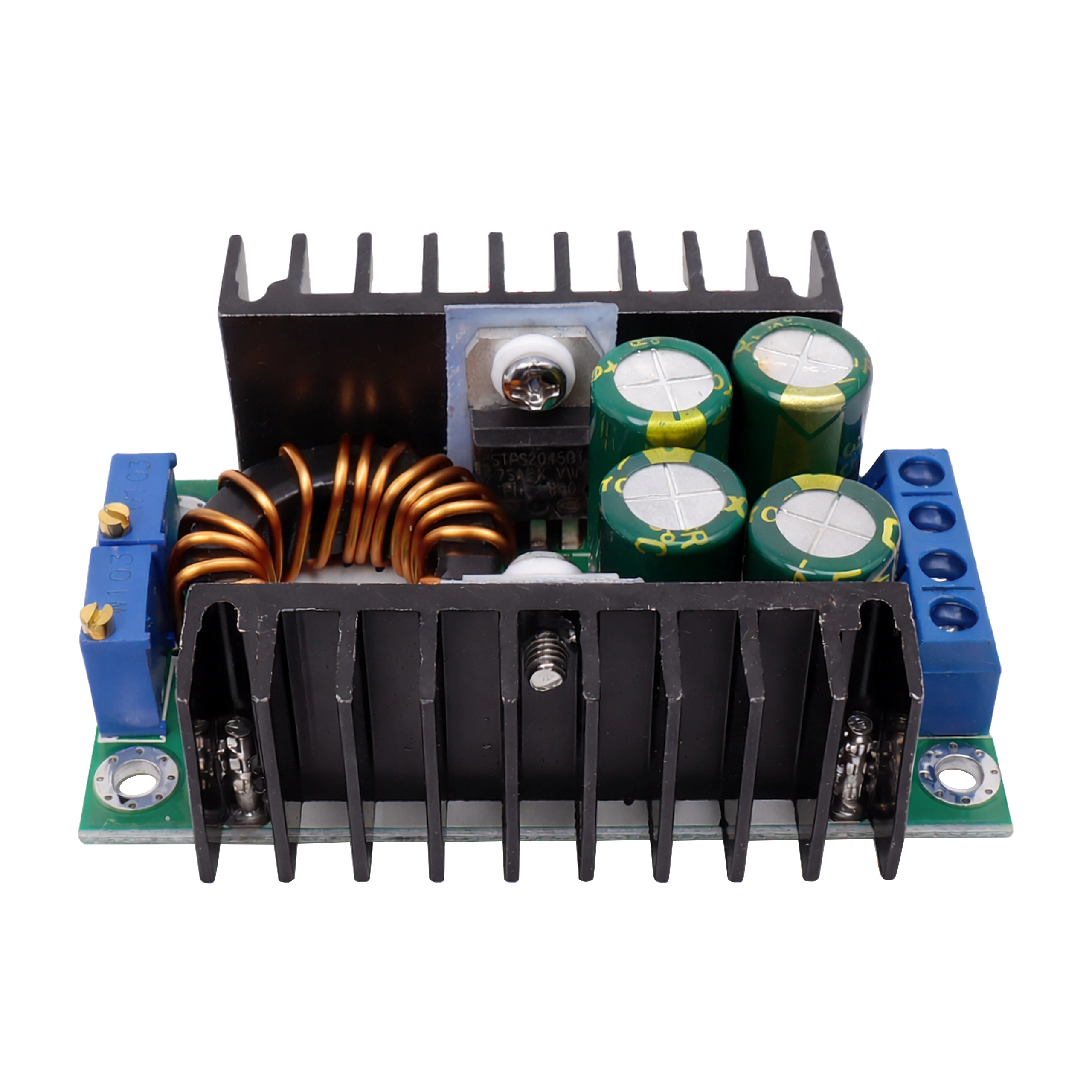

300W step-down inverter

Inverter module that allows precise and smooth reduction of input voltage to 1.2V-35V. The Xl4016 module also allows you to limit the output current via a multi-turn potentiometer so the voltage and current limitation is very precise. Mounted LED changes color when output current limiter kicks in. (NOTE potentiometers have a wide scale of approx. 50 turns) To monitor the parameters at the output of the inverter, we recommend voltmeter and ammeter modules:

Two-color module 100V – 10A

Technical data

• input voltage 4-32V DC
• aRK twist connectors: IN – OUT
• infinitely adjustable voltage with multi-turn potentiometer: 10K Ohm
• stepless adjustment of output current consumption
• output voltage 1.2V – 30V DC
• maximum power 300W
• working temperature of the module 65*C at high load it is recommended to install a fan
• maximum current 9A
• temp. operation -40 to 85*C
• current at rest 25mA
• dimensions 65mm x 47mm x 26mm
• Datasheet – technical data

Included

• 300W 1.2V-32V 9A step-down converter – 1pc.
