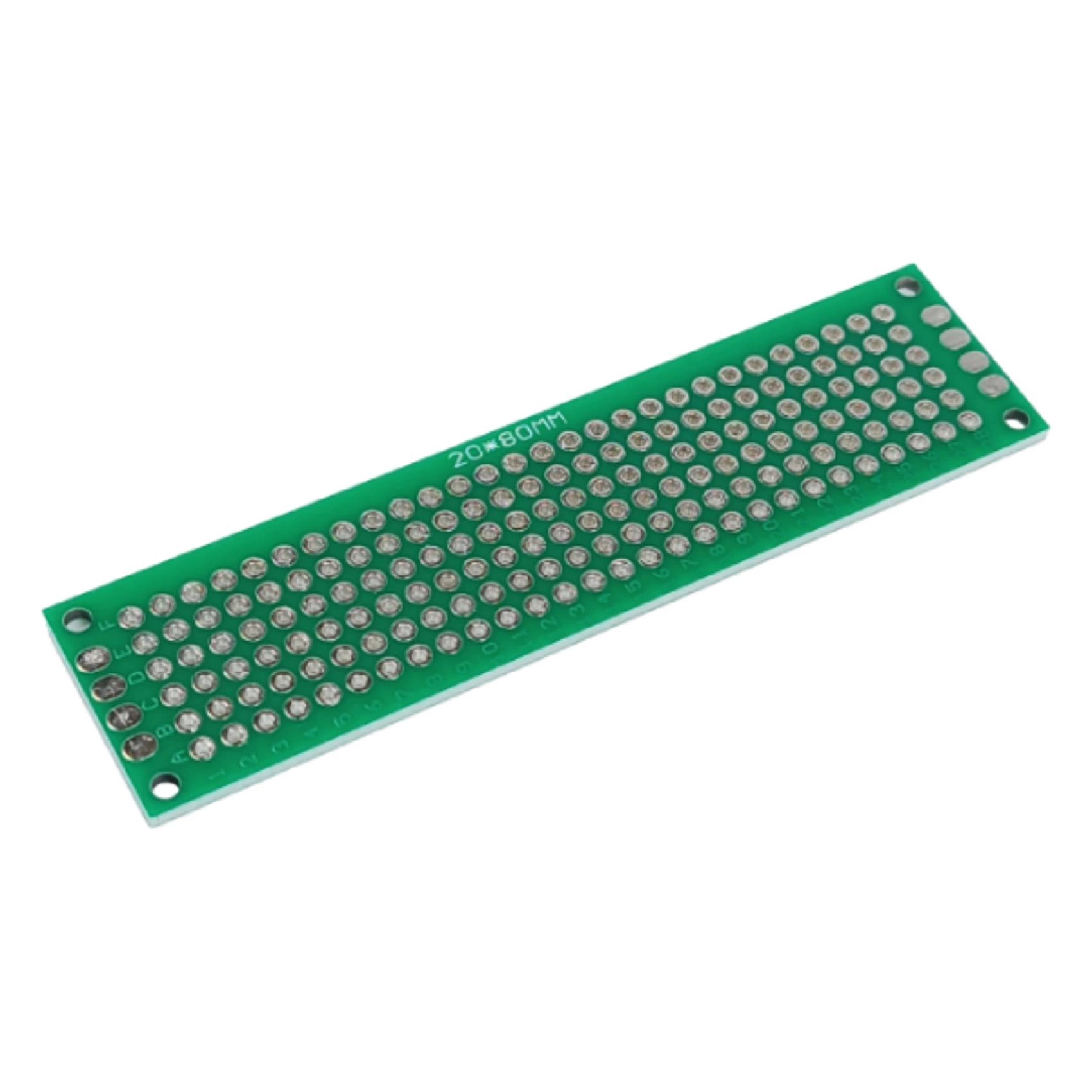

Universal board 20x80mm – PI21Z – double-sided – PCB prototype construction

Universal 20x80mm board allows you to construct any electronic circuit. Double-sided plate with metallization of standard holes with 2.54mm raster allows simple and fast installation of electronic components.

Universal 20x80mm board allows you to assemble and disassemble any electronic circuit np.:

• gold-pin strips
• all kinds of IDC connectors
• dIP and DIL sockets for integrated circuits (both sheet and precision)
• lEDs
• rectifier system
• bridge
• transistor
• stabilizer
• integrated circuits in DIP housings
• capacitor
• resistor
• etc.

Product features

• They will come in handy when building prototypes and in short production runs.
• Suitable for creating electrical, electronic circuits, prototypes using through-hole components (THT).
• Useful for soldering components on the top or bottom side of the board.
• An integral part of every prototype and workshop.

Technical data

• plate dimensions: 20 x 80 mm
• insert thickness: 1.6 mm
• hole spacing: 2.54 mm
• double-sided with metallized holes
• double-sided soldermask

Included

• Universal board 20x80mm – PI21Z – double-sided – PCB prototype construction – 1pc.
