Description

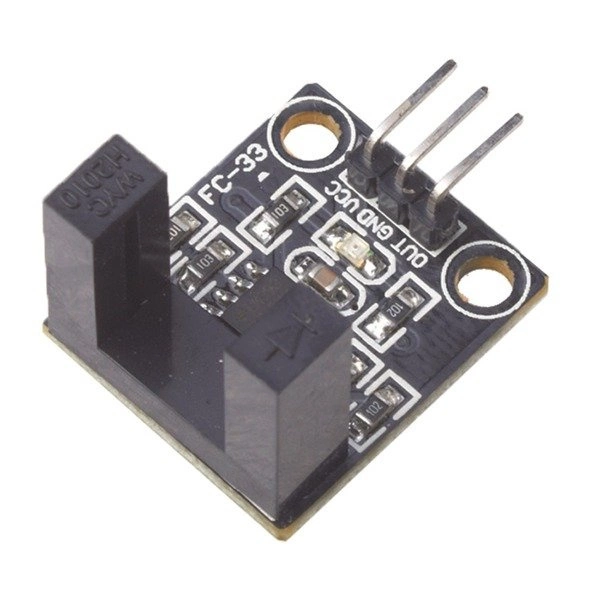

Slot sensor module 10mm detector

Module with a very wide range of applications. In combination with an encoder dial, it is possible to use, for example, in detecting the speed of motors, counting pulses, etc. Thanks to the digital output (0 – 1), you can easily count the signals from the sensor 1 – as supply voltage i.e. 5V and 0 – as ground i.e. no signal. Once connected to the microcontroller, we can calculate speed, angle of rotation and more by using an encoder dial.

Technical data

• Power supply voltage: DC 5V
• Output voltage level: TTL 5V
• Slot width: 10mm
• Comparator: LM393
• Outputs:
  • digital (binary D0)
  • vcc power supply (+3.3-5V)
  • GND (0V ground)
• Dimensions: 20mm x 25mm

Included

• Slot sensor module 10mm detector – 1pc.
