Description

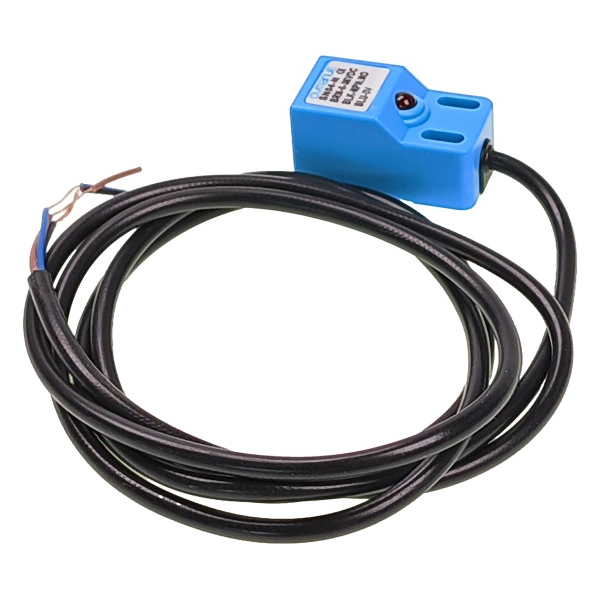

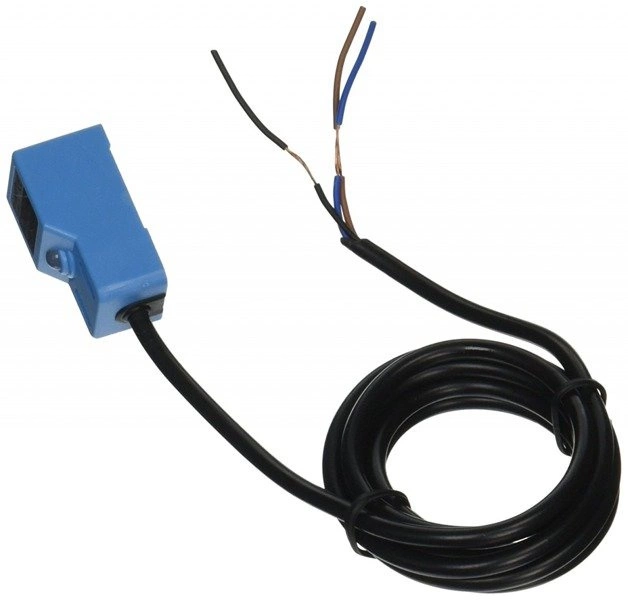

PNP NO rectangular inductive sensor – 4mm – 6-36 VDC

Product description

Digital inductive sensor including 1m cable. Detects metal objects up to 4mm away. Powered by 6-36V. When an object is detected, a high state is obtained at the output and a red LED lights up.

Technical data

• Sensor type: Inductive
• Operating range: 4mm
• Housing type: ABS plastic
• Power supply voltage: DC 6-36 VDC
• Output type: 3-wire DC PNP
• Wires:
• Blue – power –
• Brown – power supply +
• Black – normally open NO output
• Cable length: 1m
• Output status: NO
• Output current: DC 300mA
• Current consumption: DC < 15mA
• Objects detected: metal
• Signaling: by LED
• Operating temperature: -25C + 75C
• Ozilization resistance: >50MΩ
• Dimensions: 18x18x36mm

• PNP NO version
