Description

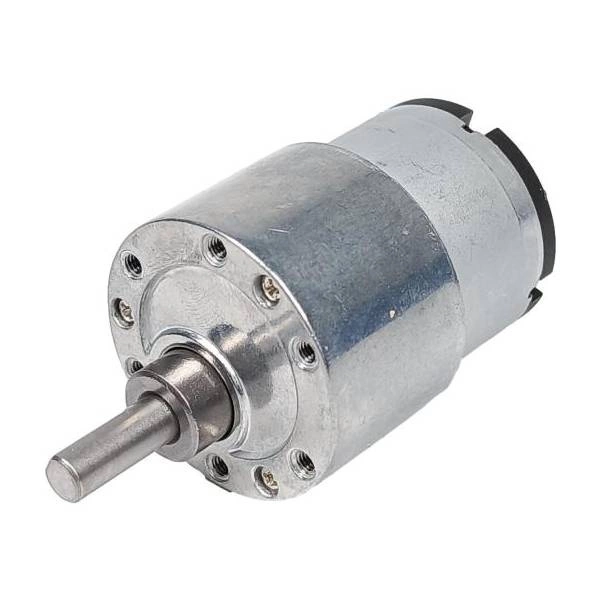

MT90 12V Motor 107 turnover with transmission

MT90 brush motor with gearbox operating at 12V/24V DC supply voltage.

• The speed achieved at 12V is 107 rpm.
• The motor is used in a variety of robots, manipulators, toys and your own DIY projects.

MT90 low-noise drive

• Long life DC motor features high torque and low noise level.
• Solidly built and ready for installation in many projects where high power is needed.

MT90 engine specifications:

• Supply voltage: 12V
• Idle current: less than 0.15A
• Peak current: 3.5A
• Torque: 30kg*cm (3Nm)
• RPM/min at idle at 12V: 107
• Dimensions: 37x45mm
• Shaft diameter: 6mm
• Shaft length: 15mm
• Height of gear x: 23.7mm
