Description

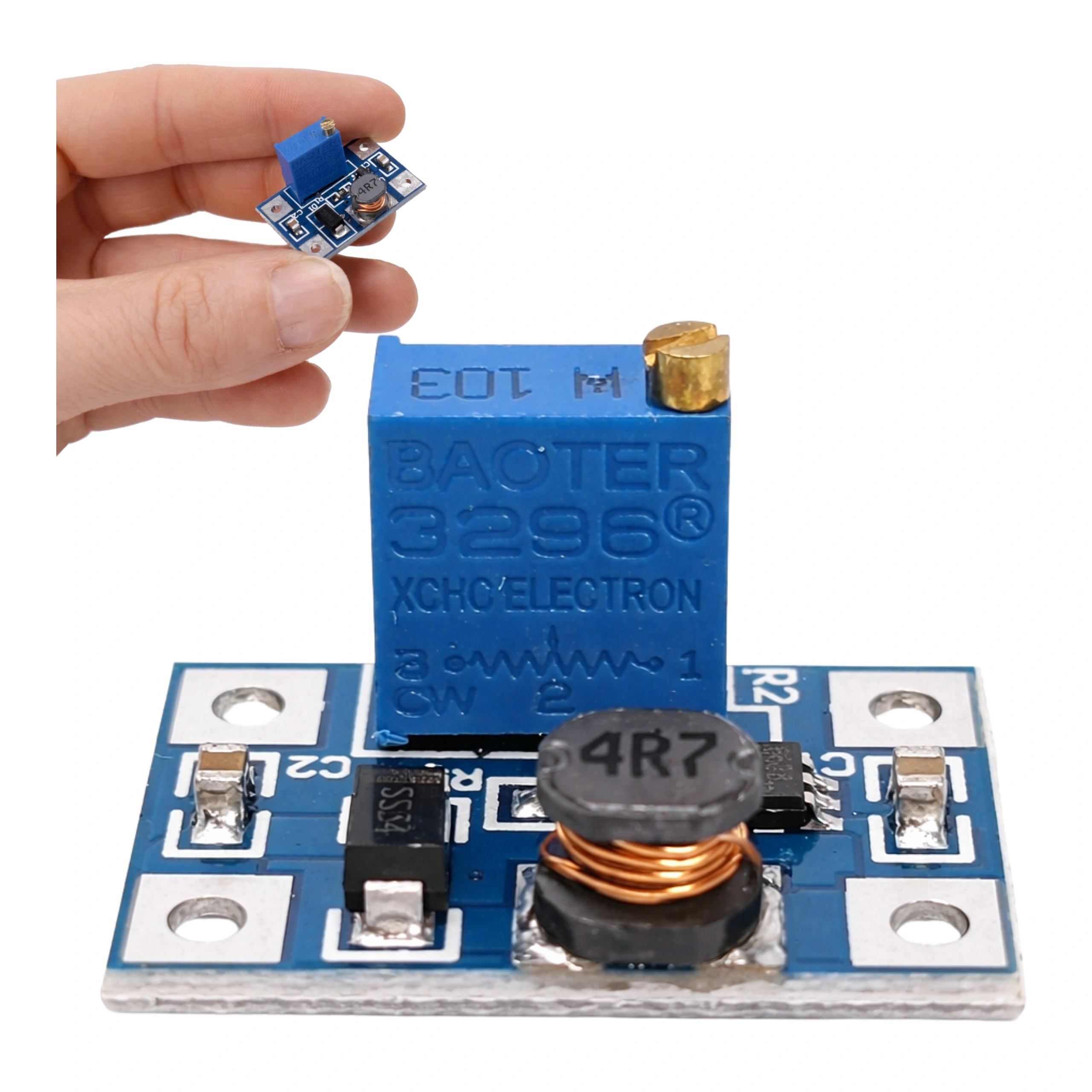

Mini Step-Up Stabilized Power Supply Module

Small size stabilized power supply module, Step-Up converter changing input voltage from 0.9-5V to 5V range. The stabilized power supply is dedicated for use in various Arduino projects.

Technical data

• Input voltage: 0.9-5 V
• Output voltage: 5V
• Maximum output current: 480mA
• Starting voltage: 0.8 V, output current: 7 mA
• Input voltage: 1-1.5 V, output voltage 5 V, current 40-100 mA
• Input voltage: 1.5-2 V, output voltage 5 V, current 100-150 mA
• Input voltage: 2-3 V, output voltage 5 V, current 150-380 mA
• Input voltage: > 3 V, output voltage 5 V, current 380-480 mA
• Operating frequency: 150 KHz
• Pin spacing: 2.54mm
• Dimensions: 11×10.5×7.5 mm

Included

• Mini Step-Up stabilized power supply module 0.9-5V to 5V – 1 piece.
