Description

LED module „Flowing light”

Self-assembly KIT. LED module „Flowing light” allows you to direct the speed of LEDs lighting up (using a potentiometer) in a specific order.

Technical data

• Chip: NE555, CD4017
• Number of LEDs: 10pcs
• LED color: red
• Voltage: 2.5V – 12V
• Size: 54mm x 21mm
• Plate thickness: 1.6mm

Once assembled and soldered

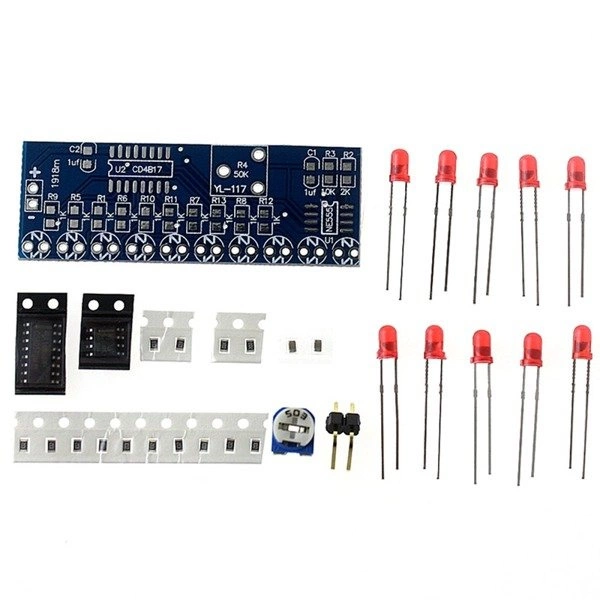

Included

• 1 printed circuit board
• 1 x Ne555 chip
• 1 x Chip CD4017
• 1 x 2-pin side for soldering
• 2 x 1UF capacitor
• 10 x 3mm red LED
• 10 x 1K resistor
• 2 x Resistor 2.2K
• 2 x 10K resistor
• 1 x blue and white 50K potentiometer

Demonstration of operation (module as assembled on a contact board, the principle of operation is the same)
