Description

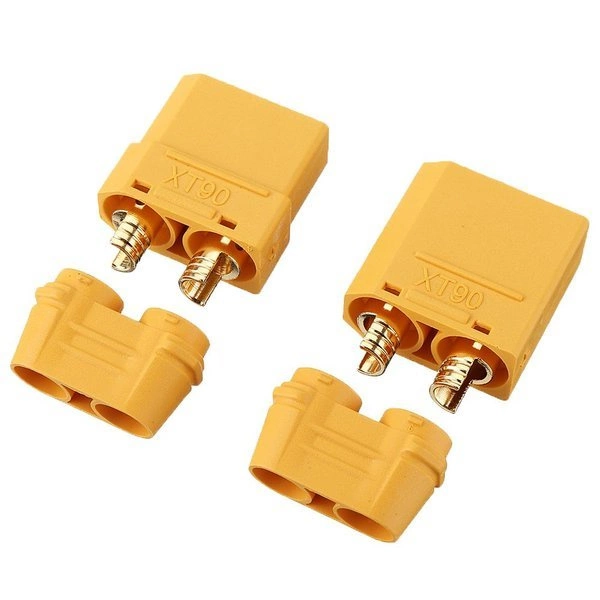

XT90 high-current 90A connector with cover

High-current connector (plug and socket) type – XT-90. Special design and durable plastic and gold-plated contacts.

The connector has a wire guard to protect against short circuits

Technical data

• The design of the connectors allows the use of wires with a cross-section of 2.5 to 6mm2.
• Contacts with very low connector resistance, very large connection area
• Compact connector design
• Gold-plated high-current contacts (built on a 4.5mm gold base).
• Case color: yellow
• Dimensions of the complete link: 40x23x10mm (with contacts)
• Weight of set: 13g
• Continuous current: 80A – instantaneous 100A

Included

• Plugs (connectors) 2 pcs. (1pc male and 1pc female)
