Description

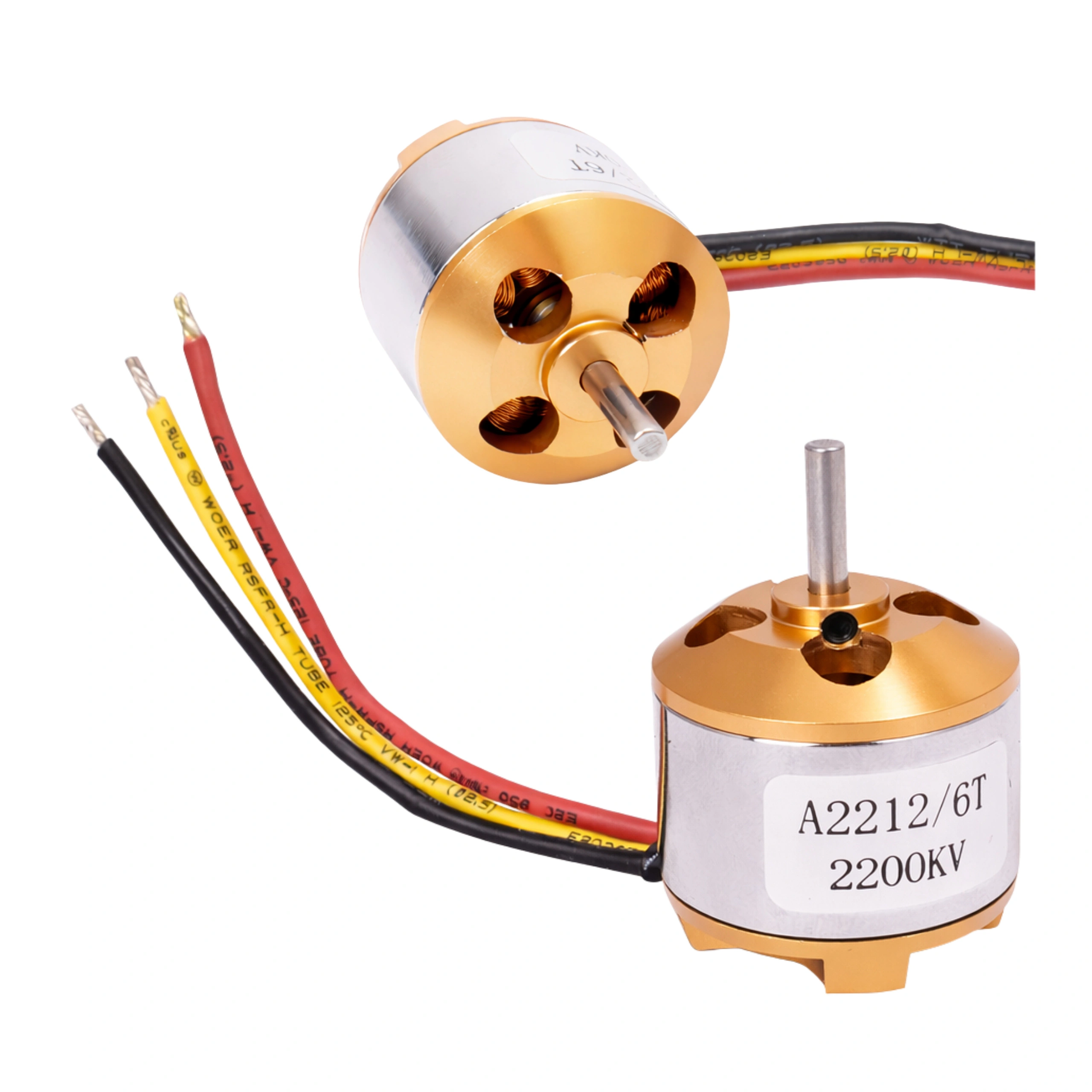

A2212 2200KV 2-3S brushless motor – 220W

Cheap, simple and versatile engines for beginner modelers (not only) with good performance, great for both aircraft and drones.

Precisely and aesthetically made.

Product features

• Precise workmanship and good balance
• Rear engine mount
• High-quality bearings
• Great for beginner modelers

Technical data

Number Objective	2 – 3 Li-Poly 5 – 7 NiCd/NiMH
Kv	2200 RPM/V
Max capacity	75%
Maximum current capacity	14 – 22A (>72%)
No-load current:	1.4A @10V
Resistance	0.045 ohms
MAX current	28A for 60S
Watt	220W
Weight	51.5 g / 1.82 oz
Dimensions	27.8 mm x 31 mm
Shaft diameter	3.2 mm
Poles	14
Model weight	300 – 1000g / 10.5 – 35 oz

• Replacement axle for A2212 motor

Propeller selection parameters

Included

• ABC-Power A2212/6T 2200KV 2-3S motor – 195W – 650g thrust
• 3mm hub
• Screws for fixing the motor – 4 pcs.
• Engine bed available separately

NOTE – Length of motor mounting screws

To avoid damaging the winding, adjust the length of the motor mounting screws accordingly. Overly long fixing screws may damage the wires inside the motor. This type of damage will not be included in the claim.
